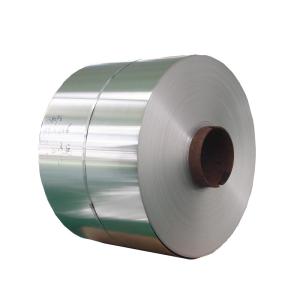

ASTM-B-209M O,H18,H14,H24,H26,H16 1235 alloy aluminum foil stock
1235 Aluminium foil stock
- Alloy:1235
- Temper:HO,H18,H14,H24,H26,H16
- Thickness:0.2mm
- Width:100-1500mm
- Standard production:ASTM-B-209M,BS EN 485-2,BS EN 573-3,GB/T3880-2008
- ID:408mm,508mm
- Package:Export standard package with wooden pallet
- Package way:Eye to sky or eye to wall
| Alloy | Al | Si + Fe | Cu | Mn | Mg | Zn | Ti | Others |
| Each |
| 1235 | 99.35 | 0.65 | 0.05 | 0.05 | 0.05 | 0.1 | 0.06 | 0.03 |
| Mechanical Property Specification | (single values are minima except as noted) |
Alloy
&
Temper | Tensile
Strength
(MPa) | Yield Strength
0.2% Proof
(MPa)min | Elongation (% in 50mm)
minimum for sheet or plate thicknesses shown |
| >0.20 - 0.30mm | >0.30 -0.50mm | >0.50 - 1.50mm | >1.50- 3.00mm | 0.2-1.0mm |
| 1235 | O | 65 - 105 | － | － | － | － | － | 15 |
| 1235 | H14 | 115 -150 | － | 1 | 2 | 3 | 4 | － |
| 1235 | H24 | 115 | － | 1 | 2 | 3 | 4 | － |
| 1235 | H26 | 130 | － | 1 | 1 | 2 | 3
(>1.5-4.0mm) | － |
1235 Aluminium properties
- High plasticity and corrosion resistance
- Elevctrical conductivity and thermal conductivity
- Gas welding,hydrogen welding and resistance welding
- Under various pressure processing and extension,bending
1235 Aluminium application
1.Food Preparation: Aluminum foil is “dual-ovenable” and can be used in both convection and fanassisted ovens. A popular use of foil is to cover thinner sections of poultry and meat to prevent
overcooking. The Henan Mintai also provides recommendations on limited uses of aluminum foil in microwave ovens.
2.Insulation: Aluminum foil is 88 percent reflective and is widely used for thermal insulation, heat exchanges and cable liners. Foil-backed building insulation not only reflects heat, also
provides a protective vapor barrier.
3.Electronics: Foil in electrical capacitors provides compact storage for electric charges. If the foil surface is treated, the oxide coating works as an insulator. Aluminum foil
capacitors are commonly found in electrical equipment, including television sets and computers.
4.Geochemical Sampling: Aluminum foil is used by geochemists to protect rock samples. Foil provides a seal from organic solvents and does not taint the samples
as they are transported from the field to the lab.
5.Art and Decoration: Anodizing aluminum foil creates an oxide layer on the aluminum surface that can accept colored dyes or metallic salts. Through this technique,
aluminum is used to create inexpensive, brightly colored foils.
1235 aluminum foil quality
- The surface of the aluminum foil should be clean,smooth.There is no corrosion,empty,folding, brown staining,slotted,add edge,wrinkling ,concave and convex.
- The surface of the aluminum foil are not allowed to have a serious color difference.
- The end surface of the aluminum foil should be clean and tidy,there is no burr,wrong layer, bruising and collapsed
